Features
Castor beans shell cracking machine is mainly used for shelling castor beans shell,also used for tea bean,and the machine is part of the agricultural machinery of the shelling technology. The hulling member is a conical double drum structure covered with a rubber layer having a large coefficient of friction. Shelling process, the castor capsule in the gap between the two rollers to do rolling movement, rubbing and squeezing to achieve shelling. If you want to deal with other beans,we also have
cocoa beans shelling machine.
The machine has the advantages of high efficiency, high dissolution rate, low breaking rate, simple structure, convenient operation and so on. It is a kind of good castor shelling machine.

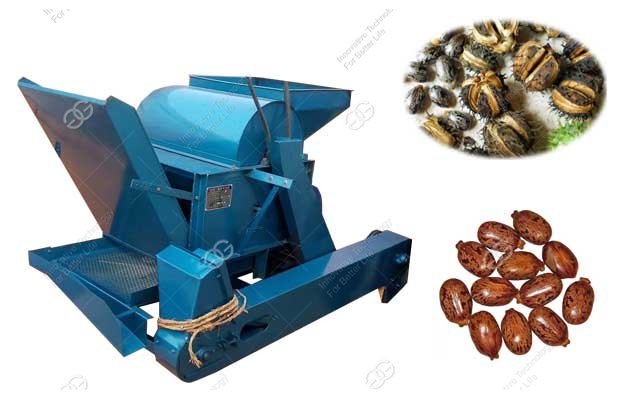

Structure and Working Principle of Castor Bean Shelling Machine:
1. Structure: The machine has feeding hopper, grain rod roller, shed concave plate, air blower, sorting sieve, air conveying machine parts, etc. Simple and compact structure, simple operation, stable performance, safe and reliable, and good durability.
2. Work Principle
Tea seed, castor, by manual entry into the hopper, first rolled into the cylinder, because of the rolling force between the rotating and shed concave plate, separate the castor bean shell from kernel.
Advantages of Castor Bean Sheller Machine:
1. Low energy consumption, compact structure;
2. Small footprint, low seed kernel dissipation;
3. Easy operation and maintenance etc., best equipment fro shelling castor bean.
Working Video:
