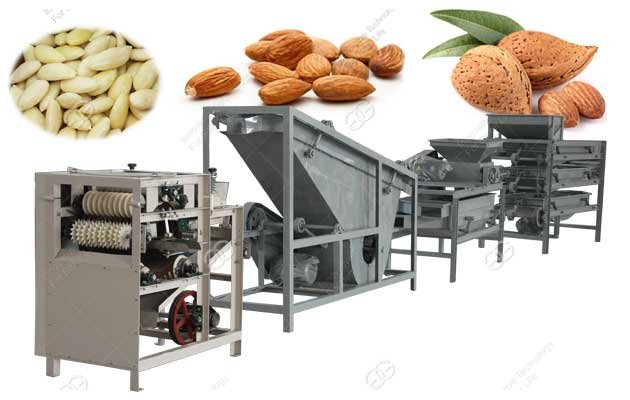

  • almond sheller line

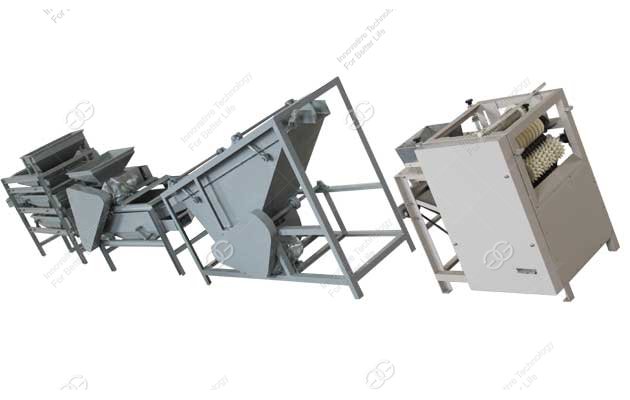

  • almond shelling peeling line

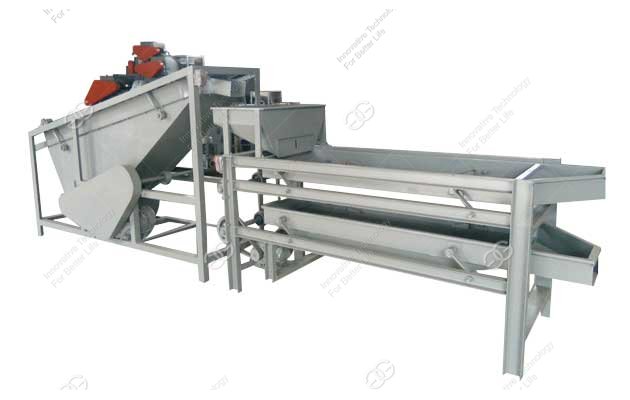

  • almond shell and kernel separating machine

Almond Shelling Peeling Production Line|Almond Sheller Line For Sale

  • Brand: GELGOOG
  • Certification: CE
  • Supply Ability: 200 Set/Sets Per Month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • Country Of Origin: China
Features

The almond shelling peeling production line is suitable for large production line, hulling clean, high complete rate, easy to clean. This shelling processing equipment is a ideal choice for large shelling processing equipment to improve efficiency, reduce cost.

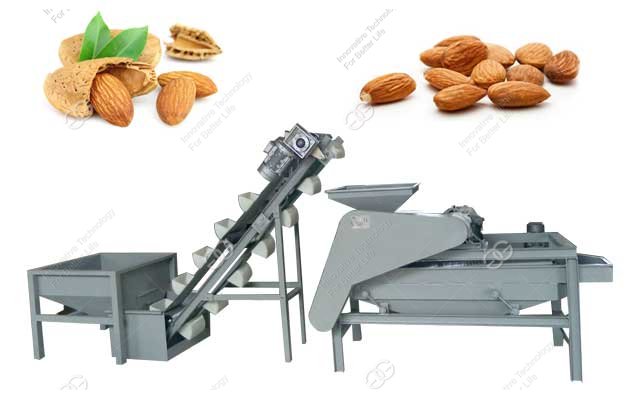

almond shelling peeling production line
Working Principle of Almond Processing Line:
1, Raw almonds by the hopper into the screening grading machine (graded according to the size of raw materials is divided into several levels, followed by the assembly of several open shell machine and separation machine) is divided into three levels of size, then divided respectively into three sheller by hopper.
2, Shelling machine (shelling gap can be adjusted according to the size of the corresponding raw materials to achieve the shell clean, nuts integrity) shell and kernel respectively into the three shell split separator.
3, The shell separator divides the shell and the kernel. One of its mouth is out of the nut and the other is out of the shell.
4, According to the size of the production and the size of raw materials, the shelling production line can be designed and customized.

According to the volume of production, raw material size, we can design this almond shelling peeling machine equipment. We also have single stage almond shelling machine.

Technical Data

Hoist Dimension: 600*600*6500mm
Power: 0.75kw/ 380v-50hz
Grading Screening Machine Three level
Dimension: 3500*1100*2000 mm
Material: Carbon steel
Power: 1.5kw/380v/50hz
Dividing Hopper Dimension: 2000*700*1300 mm
Shelling Machine Dimension: 3500*900*1300 mm
Power: 3kw/380v/50hz
Shell Separator  Machine Dimension: 3200*900*1600 mm
Power: 3kw/380v/50hz
Picking Belt Dimension: 6000*900*800 mm
Power: 1.1kw/380v/50hz
