How Do Peanut Shelling Machines Work ?

18-08-21 by

Do you know how do peanut shelling machines work? In modern society, almost all work is done by machines. Machines have become good helpers and greatly reduce the burden of labor. The same is true for peanut shelling machines, whose high efficiency and high sheller rate are welcomed by many peanut processing plants. So do you want to know how do peanut shelling machines work? If you do, then you only need to spare several minutes reading this article, you will suddenly be enlightened.

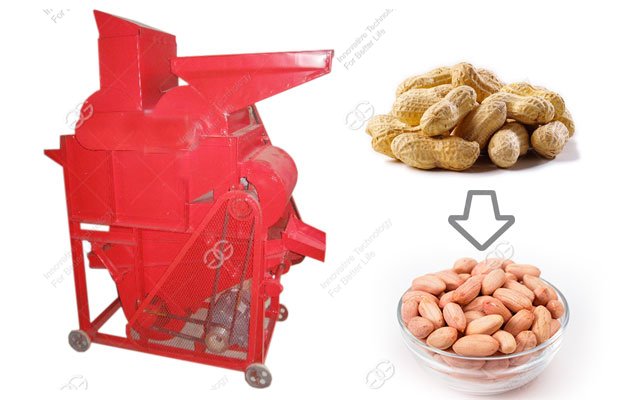

Firstly, about the structure of the machine, the peanut shelling machine has a frame, a fan, a rotor, a single-phase motor, screens (two sizes), a feeding hopper, a vibration screen, a v-belt wheel, its transmission triangle belt and other components.
After the peanut shelling machine is in normal operation, the peanuts are quantitatively, uniformly and continuously put into the hopper, and the peanut shell is broken under the repeated impact, friction and collision of the rotor. Peanut kernels and broken peanut shells pass through a screen with a certain pore size under the rotating wind pressure and blow of the rotor (the peanut is first threshed with a large-hole screen, and the cleaned peanuts are replaced with a small-hole sieve for the second shelling) At this time, the peanut shell and the pellet are subjected to the blowing force of the rotating fan. And the light-weight peanut shell is blown out of the machine body, and the peanut grain is filtered through the sieve to achieve the purpose of shelling.
And the peanut shelling machine can be operated full automatically, so you only need to put the peanuts into the feeding hopper, then the machine can complete shelling automatically.

That’s all about how do peanut shelling machines work .After knowing the working principle of the machines, I want to tell you some operation instructions about the peanut shelling machine.
1.Before the feeding, you should firstly remove iron, stone and other impurities, and then choose the appropriate shelling shell to remove the shell, which can increase the yield and reduce the breaking rate.
2. Grasp the control switch of the kernel, and the amount should be appropriate when the kernel is cleaned. If the material in the warehouse is selected, it should be placed quickly, and if it is less, it should be slowed down to keep the thickness of the material in the warehouse 5-8 cm;
3. When it is necessary to stop the machine, first stop the feeding for 3-5 minutes, then let the materials in the clearing bin go empty and then stop. If there is a shutdown due to any reason, when starting up again, the machine should be opened and then opened, and the machine should be fed after normal operation.

Now you have known a lot about the peanut shelling machine, if you want to know more other information about the peanut shelling machine, you can contact me!
